Master Bath Addition

Master Bath addition.

This was an addition on West 29th street were I added 343 square feet and updated various other rooms throughout this charming house. The addition included a new utility room, a new walk in closet, a make up area that could also be used as a small office, a reading nook and a gorgeous new master bath. I connected the walk in closet to the bathroom so that the clothes would never need to leave the laundry area. The new WIC allowed me to remove the closet the bedroom previously had allowing for a large “niche” for the bed. This expanded the Master Bedroom which the client appreciated even though that was not an original desire from the remodel.

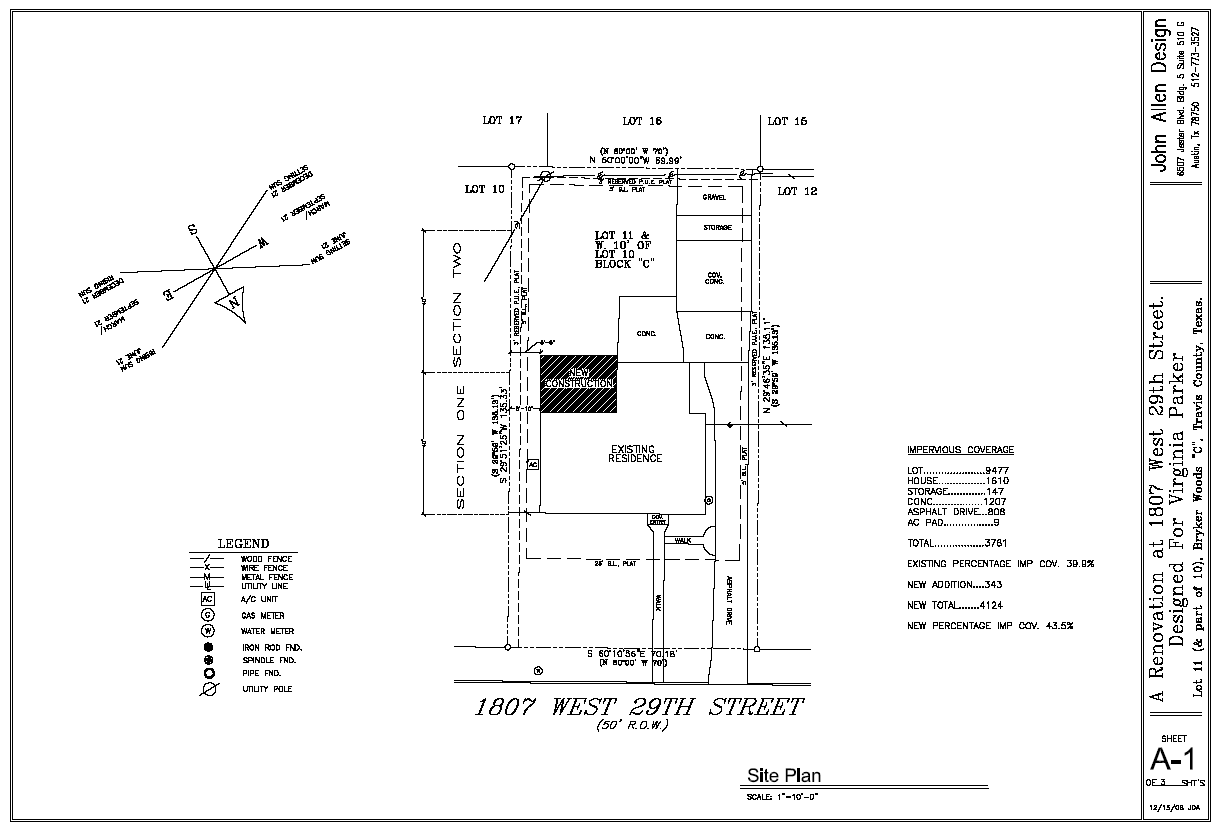

Site Plan sheet A1 (click to enlarge)

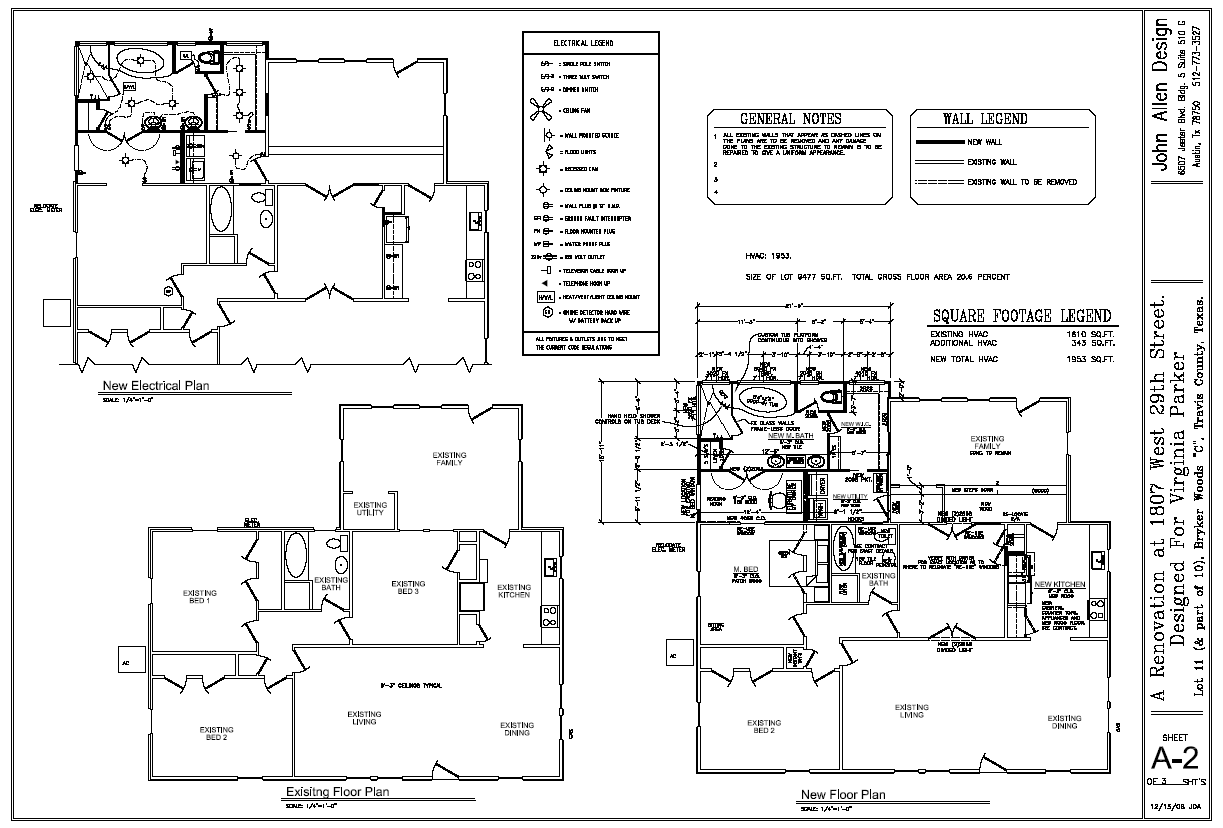

Floor Plan sheet A2 (click to enlarge)

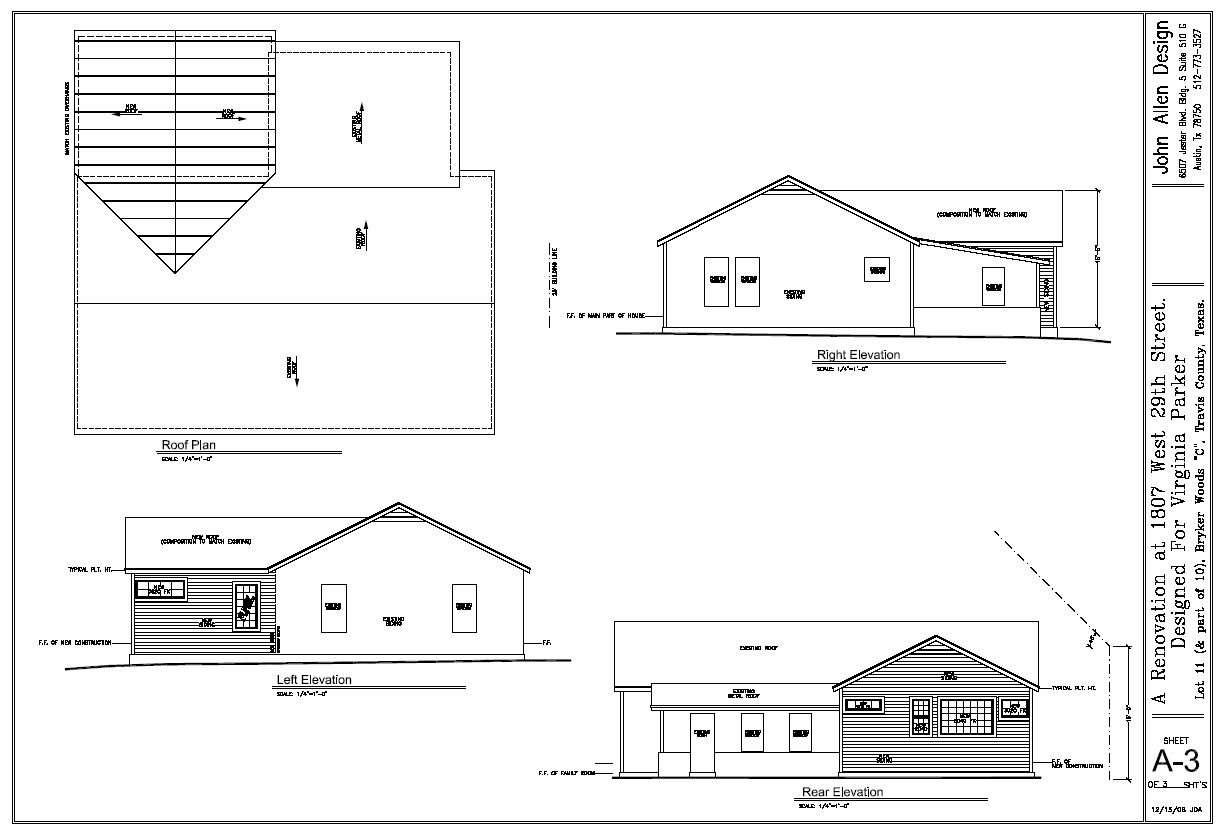

Roof Plan and Elevations sheet A3 (click to enlarge)

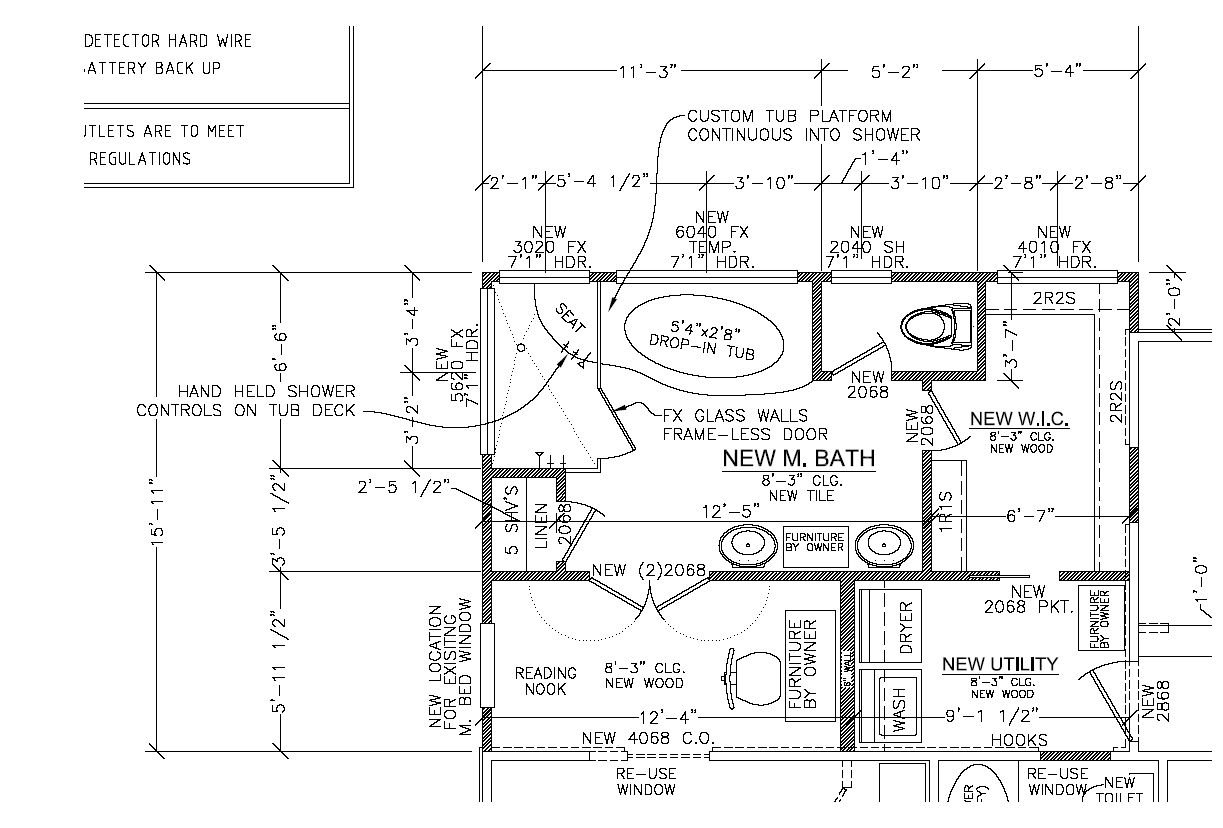

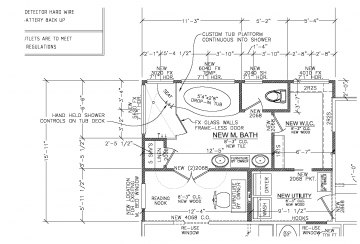

Master Bath (click to enlarge)
